MWR4X4

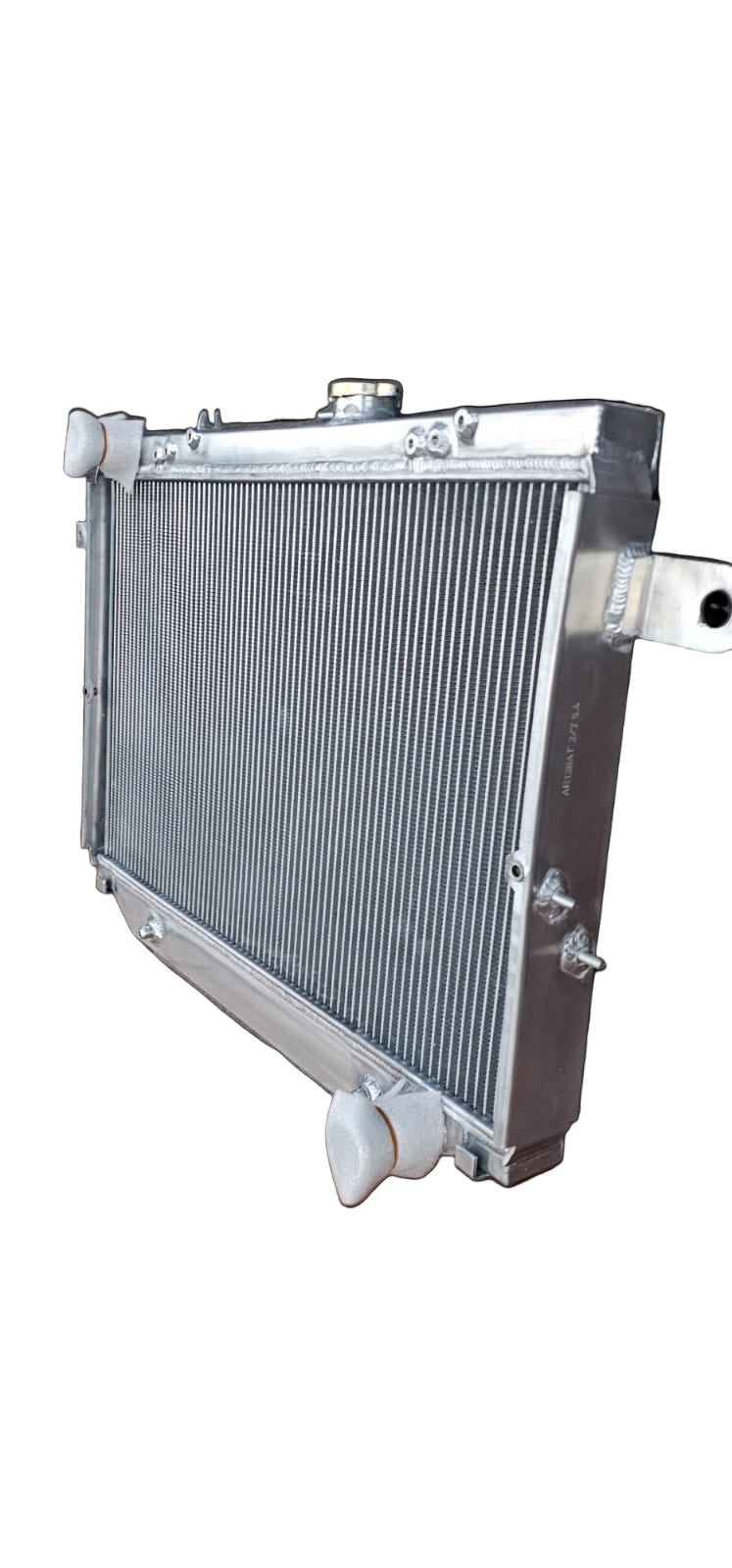

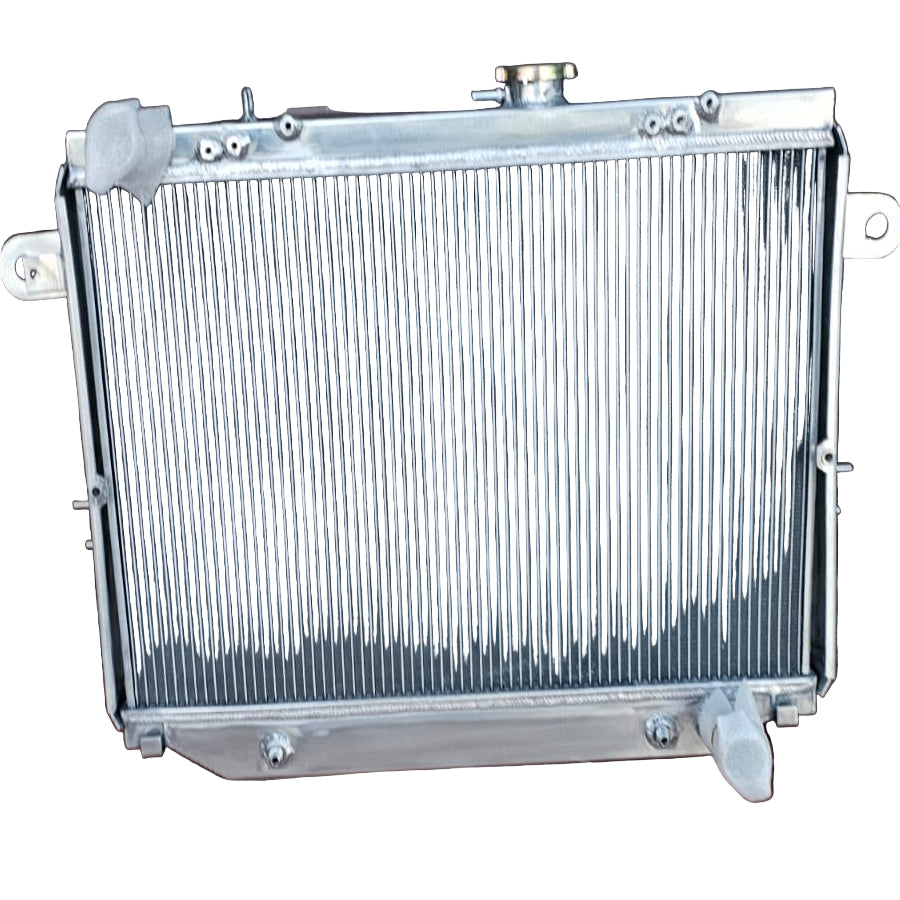

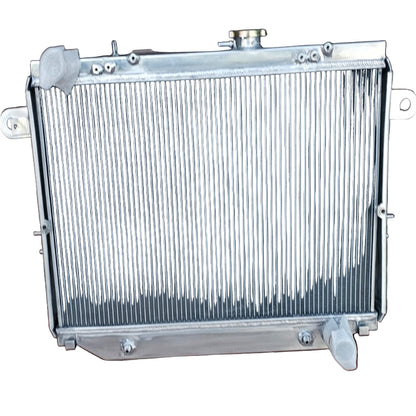

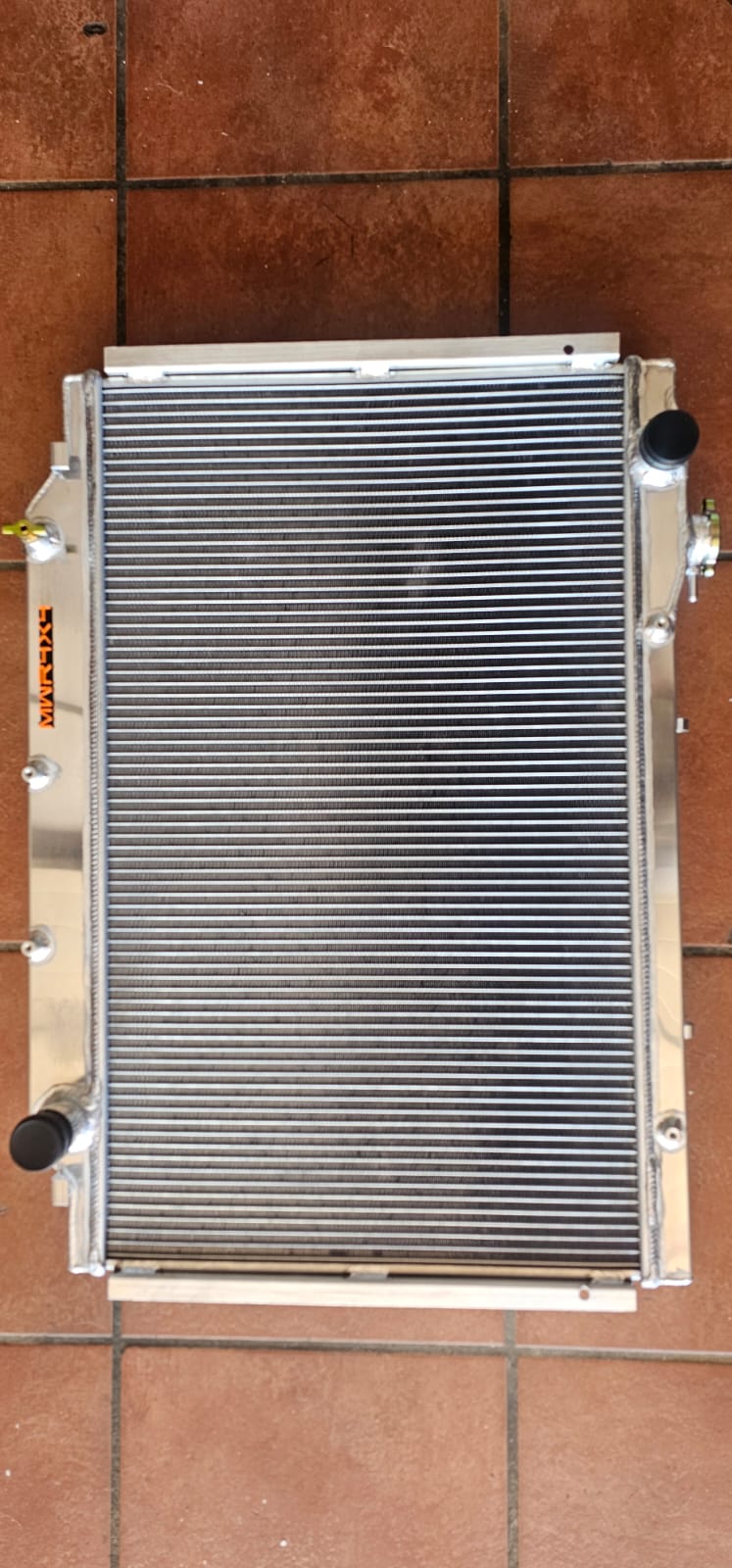

Aluminum High-Flow Radiator – Toyota Land Cruiser HDJ100 (1HD-FTE) & HDJ80 (1HD-FT/1HD/1HZ) – Fits Automatic & Manual

€455,00 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Low stock: 3 left

Car model HDJ100 HDJ80

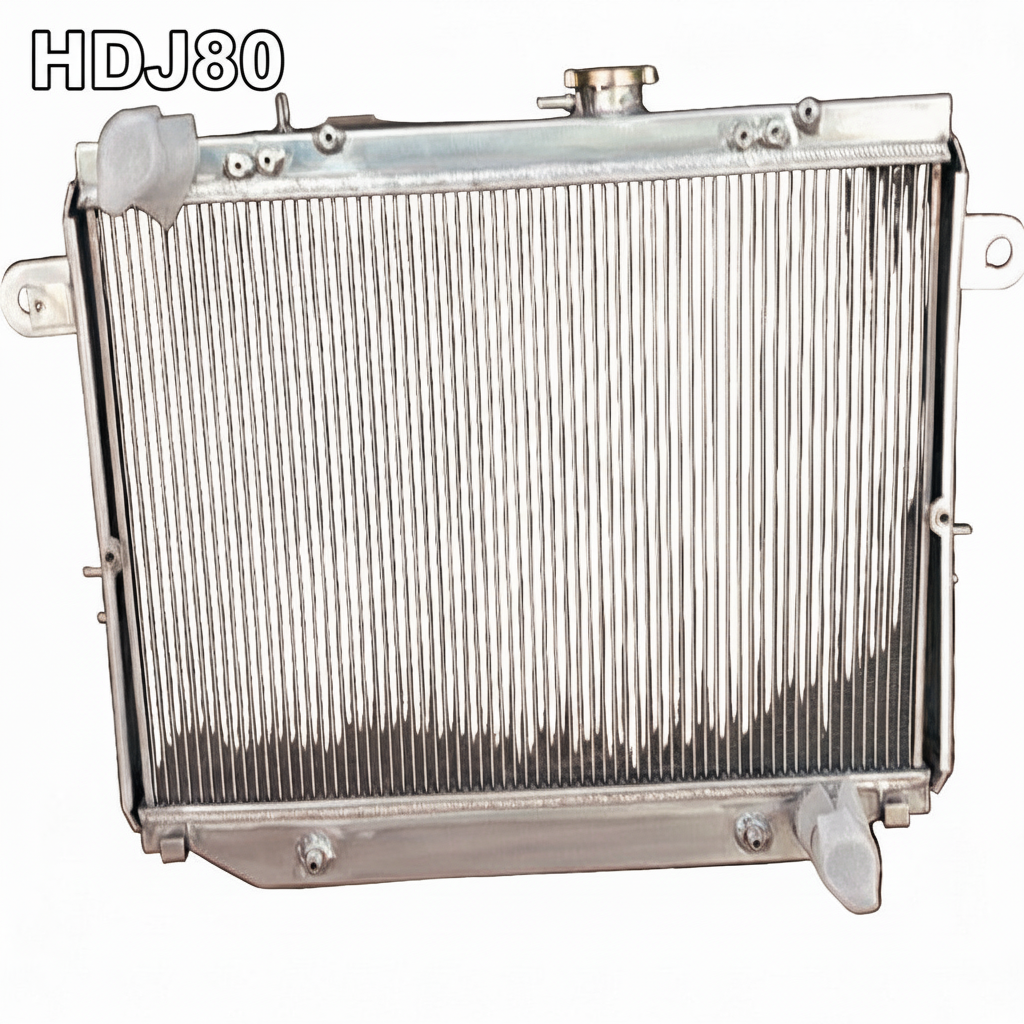

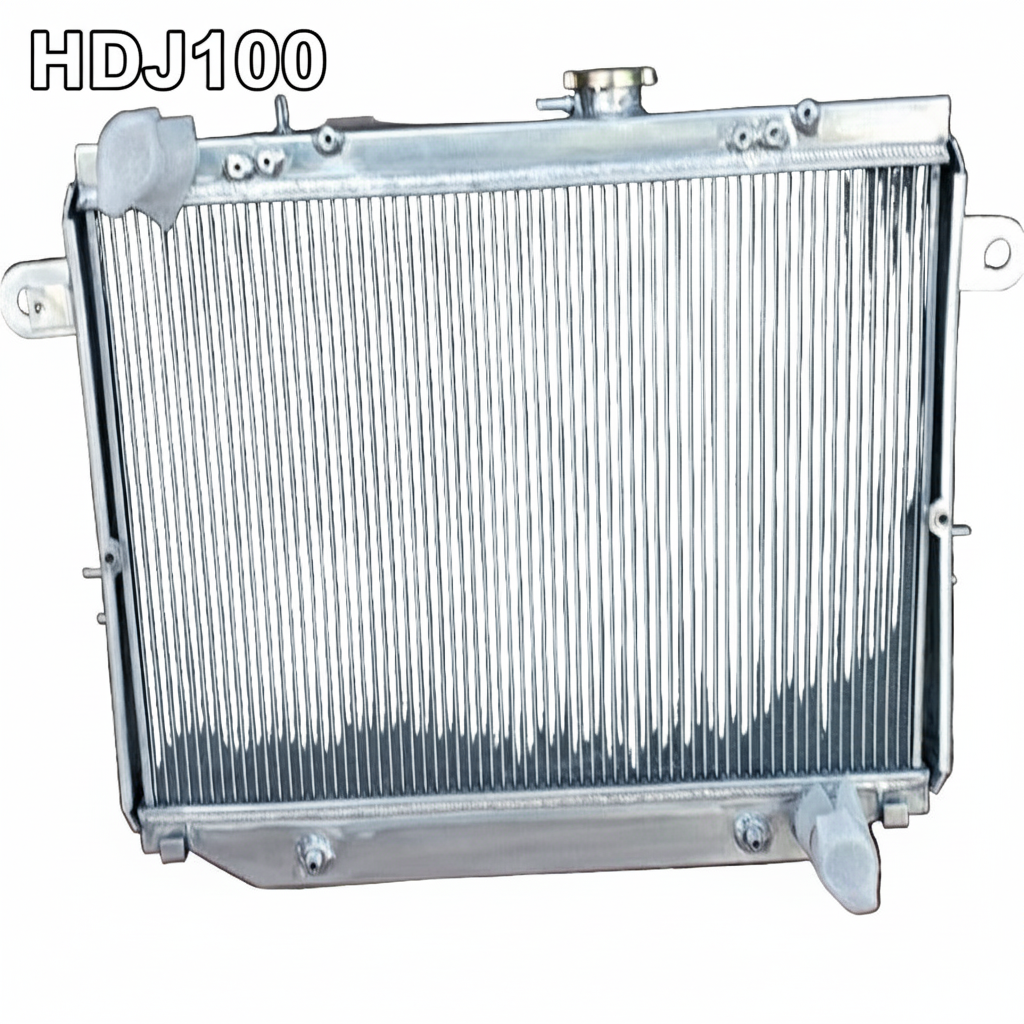

Heavy-duty full-aluminum radiator engineered to increase coolant capacity and heat rejection for 80- and 100-Series Land Cruisers. The thick core and TIG-welded tanks keep temps stable on long climbs, towing, dunes, and hot climates. Versions for HDJ100 and HDJ80 are compatible with automatic (built-in ATF cooler) and manual transmissions (cap the ports if manual). Typical upgrade cores for the 100-Series are ~510 mm tall and 53–56 mm thick; well-known options include 55 mm performance cores. The 80-Series typically runs a ~718 × 425 × 48 mm core.

Heading
Heading
Heading

View full details

KEY FEATURES

Full aluminum construction (tanks + core) for strength and better heat dissipation than plastic-tank OE units.
Thicker, high-capacity core to reduce operating temperature and fade under sustained load; 100-Series upgrades commonly use ~53–56 mm/55 mm cores.
Direct-fit layout for Land Cruiser HDJ100 (1HD-FTE) and HDJ80 platforms; retains factory shroud, mounts, and hose positions.

SPECS

HDJ100 reference dimensions (typical): core ≈695–708 W × 510 H × 53–56 T mm (example: Koyorad 695×510×53; aftermarket 708×510×56).
Core type: aluminum, multi-row, high-fin-density performance core (55 mm performance option common on 100-Series).
